Kitchen layouts are designed to be adaptable to many varied floor planning scenarios and can be adjusted accordingly. These standard types of kitchen layouts offer flexibility to your spatial and structural constraints while maintaining the standard proportions and sizes of the kitchen fixtures themselves.
The first factor to consider is the available space and intended use of that space as all people cook and use kitchens differently. After, comes placement of necessary appliances such as a dishwasher, refrigerator, and sink. Between these appliances, specific areas should be designated to indicate prepping, cooking, baking, and to organize tools among these zones. Other important factors include the availability of a work surface, efficient storage, and quality lighting.
A single row or one-wall kitchen is considered the most suitable layout for a small kitchen. All necessary equipment and storage can be found in this design although it is noted to be lacking in sufficient counter space. A kitchen cart with the top surface used as a butcher block can be an efficient addition. An L-shaped layout is another option for designing a kitchen within a small space by maximizing the use of a corner. In both cases, the opposite empty wall can feature a table that can fold down when not in use.
Planning Your Kitchen Layout |
Modular kitchen design features small modules that together, form a kitchen that increases space, storage, and efficiency. The layout of a modular kitchen can be broken down into set sections and as such, make for easy installation and repetition in production. For example, a modular kitchen cabinet is a stand alone and pre-made element that can enhance functionality for the user by meeting individual needs.
Browse through our curated Kitchens Guides for additional categorizations, tips, details, variations, styles, and histories of Kitchens. Guides provide additional insights into the unique properties and shared relationships between elements.
U-Shape Kitchens are continuous kitchen layouts that locate cabinetry and fixtures along three adjacent walls in a U-Shape arrangement. Flexible for multiple variations of lengths and depths, U-Shape Kitchen designs often incorporate central island counters for increased work space and table surfaces.
The Galley Kitchen Plan With Standard Dimensions, By Using The Autocad...
A minimum central width of 5’ (1.53 m) must be provided for use, but it is recommended that this zone be enlarged to between 6’-8’ (1.8-2.4 m) to provide sufficient access and movement space for multiple people. U-Shape Kitchens have widths that range from 9’-12’ (2.7-3.7 m) and depths that vary as desired. U-Shape Kitchens should be planned with an overall area of roughly 107 ft2 (10 m2).
U-Shape Kitchens are continuous kitchen layouts that locate cabinetry and fixtures along three adjacent walls in a U-Shape arrangement. Flexible for multiple variations of lengths and depths, U-Shape Kitchens often incorporate central island counters for increased work space and table surfaces.
, are kitchen layouts that continuously locate cabinetry and fixtures along three adjacent walls and ends in a bar counter extension. Popular for efficiently combining an additional seating area and work counter with a U-Shape layout, the G-Shape Kitchen can easily support multiple people at a given time.
Creating Kitchen Layout, Hatching Of Architectural Elements And Sectional View Of An Industrial Building In Autocad
A minimum central width of 5’ (1.53 m) must be provided for use, but it is recommended that this interior zone be enlarged to between 6’-8’ (1.8-2.4 m) in the short direction to provide adequate room for multiple people to move comfortably. A minimum passage aisle of 3’ (.91 m) must be maintained between the edge of the bar counter and nearby cabinetry. G-Shape Kitchens have overall widths that range from 13’-16’ (4-4.9 m) and depths from 12’-15’ (3.7-4.6 m). G-Shape Kitchens should be planned with an overall area of roughly 136 ft2 (12.6 m2).
G-Shape Kitchens, also known as Peninsula Kitchens, are kitchen layouts that continuously locate cabinetry and fixtures along three adjacent walls and ends in a bar counter extension. Combining an additional seating and work space with a U-Shape layout, the G-Shape Kitchen supports functionality.
L-Shape Kitchen Islands (Rectangle) are common kitchen layouts that use two adjacent walls, or an L configuration, to efficiently array the various kitchen fixtures around a rectangular island counter. Spatially flexible for multiple variations of lengths and depths, L-Shape Kitchen Island designs provide increased work space and table surfaces for kitchen activities.
Is My Kitchen Too Narrow For An Island? Understand The Measurements And Basics Of Kitchen Islands
A minimum clearance aisle of 3’6” (1.07 m) is required in front of an L-Shape layout, with recommended widths from 4’-6’ (1.2-1.8 m). L-Shape Kitchen Islands have long linear lengths that range from 8’-13’ (2.4-4 m) and short lengths of 3’-9’ (.9-2.7 m) and should be planned with an overall area of roughly 115 ft2 (10.7 m2).
L-Shape Kitchen Islands (Rectangle) are common kitchen layouts that use two adjacent walls, or an L configuration, to efficiently array the various kitchen fixtures around a rectangular island counter. L-Shape Kitchen Island designs provide increased space and surfaces for kitchen activities.
Two Row Galley Kitchen layouts are space efficient designs that combine kitchen fixtures into a pair of optimized linear bars. Designed similarly to Single Row Galley Kitchens, Double Row Galley Kitchens require an interior centralized zone that provides user access to each side.
Kitchen Layout Plan With Dimensions And Furniture Cad Drawing Details Dwg File
A clearance width between 4’-6’ (1.2-1.8 m) should be provided between the two linear bars to allow users to use and access the kitchen equipment comfortably. Two Row Galley Kitchens have linear lengths that range from 7’-12.5’ (2.1-3.8 m) and should be planned with an overall area of roughly 108 ft2 (10 m2).
Single Row Galley Kitchen layouts are space efficient designs that combine kitchen fixtures into a single optimized linear bar. Similar to Two Row Galley Kitchens, Single Row Galley Kitchens require an adjacent zone for user access.
A clearance width between 4’-6’ (1.2-1.8 m) should be provided in front of a Single Row Galley Kitchen to provide sufficient access to the kitchen equipment. Single Row Galley Kitchens have linear lengths that range from 7’-12.5’ (2.1-3.8 m) and should be planned with an overall area of roughly 75 ft2 (7 m2).A kitchen is the heart of a home. Most homeowners want a state-of-the-art kitchen that still feels like home. This especially rings true if the clients have a keen interest in cooking. Designing a kitchen is a fun challenge for any designer worth their salt.
U Shaped Kitchen
It doesn’t matter how big or small the kitchen is or how the four walls are shaped. Tiny and cramped, or massive and sprawling, boxed in or open. A skilled kitchen planner armed with an intelligent interior design layout can build out a kitchen that’s as functional as it is becoming.
When it comes to a new kitchen plan, there are a lot of behind-the-scenes preplanning and discussions. Contrary to popular beliefs, it is not just about stacking cabinets and kitchen appliances. A designer and the homeowner need to make several decisions together so that the final output is a kitchen that is not just a designer’s dream but also utilitarian.
The start of a modern kitchen design or good kitchen remodels always begins with a clear view of the project. To conjure a practical kitchen design, the designer must accurately make use of every single square feet available. We have listed some critical pointers for you better measure any kitchen layout.
How To Measure A Kitchen. A Handy Guide From Wood & Wire
We have gathered the most common and popular options when it comes to a kitchen layout design. The choice is made according to several factors such as the size of the room available, the number of people who are going to use the kitchen, how frequently the kitchen will be used, etc.

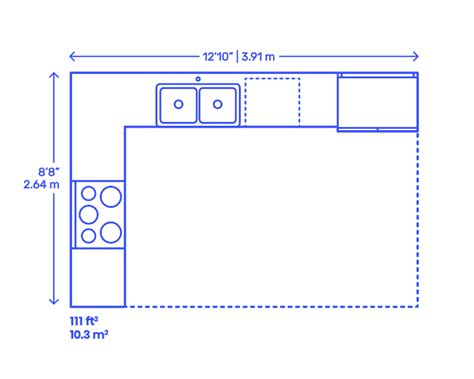

The most commonly recognized layout is the L-Shape kitchen layout, placed between two adjacent walls in the shape of the letter L. It also allows the user to expand the kitchen by adding island countertops for extended workspace.
A clearance of 3’6″ (1.07 m) is mandatory in front of an L-Shape layout. The universally recommended widths start from 4’-6′ (1.2-1.8 m). The linear counters range from 3’-9′ (.9-2.7 m) on the short side and 8’-13′ (2.4-4 m) on the longer side. L-Shape Kitchens should ideally have an area of around 111 ft2 (10.3 m2).
Modular Kitchen Design
Pros: This is one of the most cost-efficient and straightforward designs to execute. Adding an island counter can also compliment the functionality of the kitchen.
Cons: Depending on the user, some may find it agonizing to shuffle between the sink, stove, and refrigerator. Moreover, if more than two cooks are in the kitchen space, it can become too crowded to work efficiently in the small space. The corner base cabinets are also impractical unless you spend more on high-tech fittings that enhance their function.
U-shaped kitchens have a counter running unbroken along three adjacent walls. They are often accompanied by central island counters as an added workspace.
Kitchen And Dining Area Measurements And Standards Guide
A clearance of 5′ (1.53 m) is mandatory in the center of a U-shaped kitchen. This zone can be maximized to have a space of 6’-8′ (1.8-2.4 m) to provide access and moving space for more than 2 people. The universally recommended width ranges between 9’-12′ (2.7-3.7 m).
The linear counters range from 3’-9′ (.9-2.7 m) on the short side and 8’-13′ (2.4-4 m) on the longer side. U-Shape Kitchens should have a footprint of around 107 ft2 (10 m2).
Pros: A chef can work smoothly with ample floor space. The design also
