1.Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks whereverrequired. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and othersas per the standards. .open autocad and open new file .unit command and set decimal and precision 0.00 .d(dimension…
Create a 3 dimensional model of the residential building with a rendered view. assume W = 5' x 4', D= 4' x 7' , D1= 2'6 x 4', w1 = 2' x 4' .open autocad and open new page .unit command ans set engineering, precision 0'0.00 and unit inches .d(dimension style manager) and set primary unit enginnering , precision 0'…
1. Create a 3D Isometric View of the building with plan and elevation given. .open autocad and open new page .unit command and set engineering , precision 0' 0 and unit inches .d(dimension style manager ) command and set primary unit engineering and precision 0'0 .using line command , trim command , offset command ,…

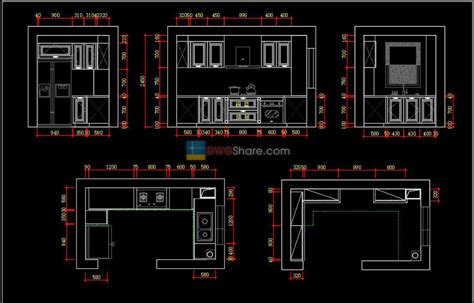

Autocad Archives Of Kitchen Dwg
1. Create a 3D Furniture element as shown in the Figure. missing dimensions are assumed. .open autocad and open new page. .unit command and set enginnering and precision 0' 0.0 and unit inches. .d(dimension styke manager) command and set enigneering and precision 0'0.0. .with the help of workspace switching switch from…
1.Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout.…
2.Create the doors type for warehouse as shown in the Figure ,also Create the blocks of this door type after creating them. dimension as shown in given image: .open autocad and open new file. .unit command, set decimal and precision 0.00 .using line command, offset command , trim command , copy command ,move command and…
Kitchen Of Office Layout Plan And Furniture Auto Cad Drawing Details Dwg File
Design and Draft a layout of a residential building with the following details: a. Plot Size: 60’x20’(18.3m x6m) b. Orientation- Facing East c. conder D1 = 4' x 7', D = 2' 6 X 7', W = 5' X 4', column size = 1' x 1', beam size = 9 x 9, foundation size = 4' x 4' x 5' (ht). Slab = 5, …
1. Create the Plan and Sections: assumed W3 = 1200 X 1500 MM W2 = 1000 X 1500 MM W1 = 800 X 600 MM W4 = 600 X 600 MM W = 600 X 1500 MM D2 = 1000 X 2100 MM D1 = 700 X 2100 MM D = 900 X 2100 MM Tread = 250 MM .open autocad, opem new file…
Figure4.Sketch the column details :bar sizes from the schedule.8mm ---- 0.31 Inches25mm--- 1 inches16mm—0.62 inches .open autocad ,open new file. .unit command and type engineering, set precision 0'0 and unit inches. .d command for dimension style and in primary unit set foemat engineering and precision 0'0.…
Modern Kitchen Elevation Cad Drawings, 2d Autocad Models
Ans: the names of the structural drawings required to be provided to the site for construction are : 1. Centre Line drawings. 2.Footing and column layout with reinforcement details. 3.Column schedule withreinforcement details. 4.Plinth Beam Layoutwithreinforcement details. 5.First floor beam…
1.Concrete Mix Design for M35 grade concrete with fly ash : Type of cement…
Ans: the names of the structural drawings required to be provided to the site for construction are : 1. Centre Line drawings. 2.Footing and column layout with reinforcement details. 3.Column schedule withreinforcement details. 4.Plinth Beam Layoutwithreinforcement details. 5.First floor beam…
1.Concrete Mix Design for M35 grade concrete with fly ash : Type of cement…
