Kitchen Layout Dimensions With Island

L-Shape Kitchen Islands (Rectangle) are common kitchen layouts that use two adjacent walls, or an L configuration, to efficiently array the various kitchen fixtures around a rectangular island counter. Spatially flexible for multiple variations of lengths and depths, L-Shape Kitchen Island designs provide increased work space and table surfaces for kitchen activities.

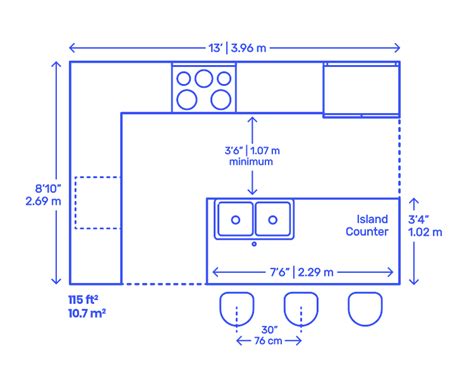

A minimum clearance aisle of 3’6” (1.07 m) is required in front of an L-Shape layout, with recommended widths from 4’-6’ (1.2-1.8 m). L-Shape Kitchen Islands have long linear lengths that range from 8’-13’ (2.4-4 m) and short lengths of 3’-9’ (.9-2.7 m) and should be planned with an overall area of roughly 115 ft2 (10.7 m2).

L-Shape Kitchen Islands are common kitchen layouts that use two adjacent walls, or an L configuration, to efficiently array the various kitchen fixtures around an island counter.

Kitchen Layouts & 6 Dimension Diagrams (2021!)

L-Shape Kitchen Island layouts must maintain a minimum clearance aisle of 3’6” | 1.07 m, but it is recommended that a clearance width between 4’-6’ | 1.2-1.8 m should be provided in order to provide sufficient access to the kitchen equipment.

L-Shape Kitchen Islands should be sized with an area of roughly 115 ft2 | 10.7 m2. Common lengths of L-Shape Kitchen Island layouts range from 8’-13’ | 2.4-4 m in the long direction and 3’-9’ | .9-2.7m in the short direction with island sizes that adjust as desired.

The first factor to consider is the available space and intended use of that space as all people cook and use kitchens differently. After, comes placement of necessary appliances such as a dishwasher, refrigerator, and sink. Between these appliances, specific areas should be designated to indicate prepping, cooking, baking, and to organize tools among these zones. Other important factors include the availability of a work surface, efficient storage, and quality lighting.

Kitchen Design 2 With 2/ Islands. Looking For Thoughts On Everything But Especially Spacing

A single row or one-wall kitchen is considered the most suitable layout for a small kitchen. All necessary equipment and storage can be found in this design although it is noted to be lacking in sufficient counter space. A kitchen cart with the top surface used as a butcher block can be an efficient addition. An L-shaped layout is another option for designing a kitchen within a small space by maximizing the use of a corner. In both cases, the opposite empty wall can feature a table that can fold down when not in use.

Modular kitchen design features small modules that together, form a kitchen that increases space, storage, and efficiency. The layout of a modular kitchen can be broken down into set sections and as such, make for easy installation and repetition in production. For example, a modular kitchen cabinet is a stand alone and pre-made element that can enhance functionality for the user by meeting individual needs.

Kitchen layouts are designed to adapt to many floor planning scenarios and can be adjusted accordingly. These standard types of kitchen layouts offer flexibility around your spatial and structural constraints while meeting the standard proportions and sizes of the kitchen fixtures themselves.For a lot of my clients, no kitchen design is complete without a kitchen island at its center. The island has become the icon of the modern kitchen—the 21st-century equivalent of the old-fashioned hearth. It’s easy to understand why.

Feedback On Kitchen Layout And Island Size Please

First, islands work. Because they can be accessed from all sides like the old kitchen table, they’re ideal for a variety of kitchen tasks (see “Uses for a Kitchen Island, ” below).

Second, these freestanding pieces instantly become the focal point of a kitchen because they can have the look and feel of furniture rather than components in a domestic laboratory.

Third, islands help kitchens adjust to some of the big changes in American life in the past few decades. In June Cleaver’s 1950s kitchen, all the appliances and cabinets were tacked to the walls of a closed-in room. Today’s kitchens are not only open to other rooms but they also have to accommodate multiple cooks, kids doing homework, and even party guests.

Kitchen Islands: A Guide To Sizes

A well-designed island offers a place for people to congregate while at the same time separating those who are cooking and cleaning from those who are just hanging out.

Islands have to work to make them earn the space they occupy. Here are the four things islands can do and some design suggestions for each function. (If you want an even more in-depth review, read our “All About Kitchen Islands” article.)

Shoehorning an island into a kitchen that’s too small is a mistake. Here are the minimum clearances the author uses between islands and cabinets, as well as minimum sizes for islands with different uses. Remember, these are minimums; it’s better to be more generous if your floor plan allows. |

Kitchen Layout And Appliance Planning Tips

Kitchen islands suck space. At minimum, an island should be 4 feet long and a little more than 2 feet deep, but it must also have room for people to move and work around it. Unless your kitchen is at least 8 feet deep and more than 12 feet long, don’t even think about an island. (For more on practical dimensions for islands and the minimum space around them, see “Island Minimums, ” above, or watch Tom Silva discuss how to size a kitchen island.)

Where you have activity, you need light. For islands, that means dedicated lighting—you can’t count on ambient light to illuminate your workspace, and you don’t have upper cabinets to hide task lights, as you do elsewhere in the kitchen.

As with most task lighting, you want the light to come straight down onto the island. The most common choice is recessed lighting, which is relatively easy if you have standard-height ceilings but trickier with high ceilings. If the distance from the countertop to the ceiling is greater than 6 feet, you’ll need to use fixtures or bulbs specially designed to project light down rather than spread it out.

Commercial Kitchen Design Principles

Another option is pendant lights, which hang from the ceiling. Be careful with these, though. It’s easy to end up with them at the wrong height, which can either block your view from the island or blind you with a high-intensity bulb shining directly into your eyes. Whatever type of lighting you choose, make sure it can be dimmed when you don’t need maximum illumination for working.

You can gain valuable real estate on both the “working” side and the “public” side of an island for storage, always a critical need in kitchens. On the public side, take advantage of shallow cabinets (installed back-to-back, with deeper cabinets facing the kitchen) for serving items—napkins, cutlery, platters, etc.—that don’t need to be in the food prep area.

On the working side, make sure there’s room to store the things that are needed for the activity the island supports, because an island’s strong suit is also its biggest downfall: It’s isolated. If it’s a cooking island, then pots, pans, and spices should be at hand. The space under cooktops is great for deep drawers for pots and pans. (The temptation is to hang them from an expensive pot rack, which won’t hold deeper pots or lids and gets in the way of your view.)

What Is The Standard Size Of A Kitchen Island?

If it’s a prep island, don’t forget storage for knives and small appliances like mixers and food processors (consider pop-ups — platforms that swing out from behind a door in the island base—or appliance garages for these), and convenient access to garbage and compost bins. If the island is going to be dedicated to cleanup, you’ll need a place for dish towels, detergent, and brushes.

Undercounter storage space is limited on islands that include a sink and/or major appliances like a dishwasher or oven; you’ll have to plan more carefully for those. The same is true for cooktops with downdraft fans, the machinery for which must be stored in the cabinet below. One way around this is to use the ends of the island. Round ends are perfect for lazy Susans, and almost any island end can accommodate open shelving or even a shallow cabinet.

Life would be a lot easier if you could just ignore ventilating an island dedicated to cooking — but you can’t. The most common scheme is to install a downdraft fan behind the cooktop; in some cooktops and ranges it’s incorporated into the appliance. That solves the visual problem of an overhead hood messing up sight lines. But even the best downdraft fan is not up to the worst cooking odors. If you really want to lose the fried fish smell, include a second exhaust fan mounted in the ceiling. It will also help limit the amount of moisture condensing on the inside of your windows in the winter when you use a tall stockpot.

The Small Kitchen Island Size Guide

The other option is an overhead hood that extends up through the ceiling. Because it’s exposed on all sides, it must be completely finished (read expensive), and it becomes a dominant element of the design. You can opt for manufactured versions, or get a hood custom-built and finished in just about any material. The big caution here: It’s easy for the mass of a hood, placed low enough to be effective, to ruin the joy of having open space above
